Foobar2000 Now Playing

About

This project is to allow for users to be able to display the current song that is playing in Foobar2000.

The following information will be displayed and will be updated every second

• Song Title
• Album
• Artist
• Elapsed Time
• Remaing Time
• Album Art*

Quick Setup

This is a quick setup for the application, if you would like to learn more about the setup or need more information, please continue to the next section

1. Download the component
2. Navigate to your x86 Foobar2000 portable installation folder
3. Copy the `foo_np_simple.dll` to the components folder
4. Open Foobar2000 and navigate to Tools > Preferences
5. Navigate to the Tools tab
6. Navigate to the Now Playing Simple tab
7. Set the file path to a json file called `foo_now_playing.json`
8. Set the formated string to:


{
    "nowplaying": {
        "playing": $replace(%isplaying%,'?','0'),
        "paused": $replace(%ispaused%,'?','0'),
        "albumartist": "$replace(%album artist%,'"','\"','\','\\')",
        "album": "$replace(%album%,'"','\"','\','\\')",
        "artist": "$replace(%artist%,'"','\"','\','\\')",
        "title": "$replace(%title%,'"','\"','\','\\')",
        "tracknumber": $add($replace(%track number%,'?','0'),0),
        "length": $replace(%length_seconds%,'?','0'),
        "elapsed": $replace(%playback_time_seconds%,'?','0'),
        "path": "$replace(%path%,'"','\"','\','\\')"
    }
}



Set Up

Foobar2000

Head to Foobar2000's website here: https://www.foobar2000.org/download

Download the newist x32 version

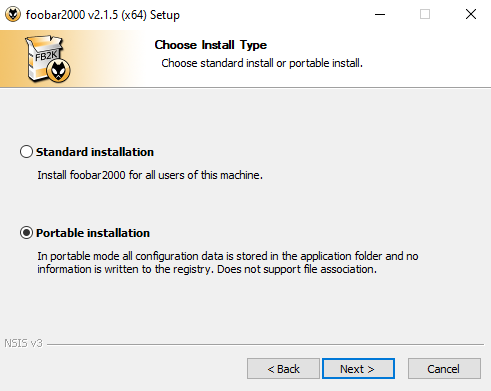

Install the application as portable

Installation does not matter

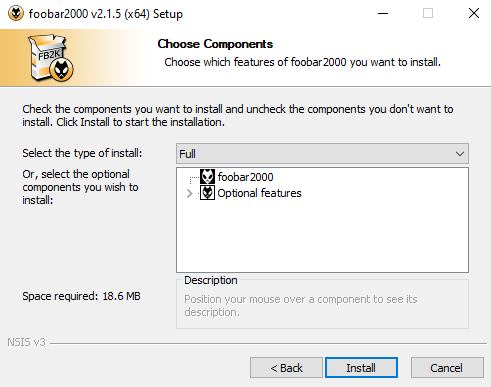

Full installation for components are recomended, but none needed for this project

Once Installed run Foobar2000

OBS Setup

Select the newest release on GitHub

Download one of the following versions

1. Node JS Server - Album art and common color extracter
2. Foobar Previewer - HTML document to parse JSO
3. Foobar Now Playing Simple Component - REQUIRED
4. Full Project - Includes node JS server, Component, and HTML document

Download OBS (Any Version) if not already installed

Install with any settings as needed

Navigate to scene of choice

Create a new Browser Source

Check Local File

Browse for local file, and select "NP.html" in this folder

Set hight and width

• Height: >Y
• Width: >X

Keep all setings as default unless needed otherwise

Press OK

Components

Download the component in this project here.

WARNING: This is a raw .dll file, meaning windows will flag this, at the moment this component has been archived, when a new version is posted this will be updated.

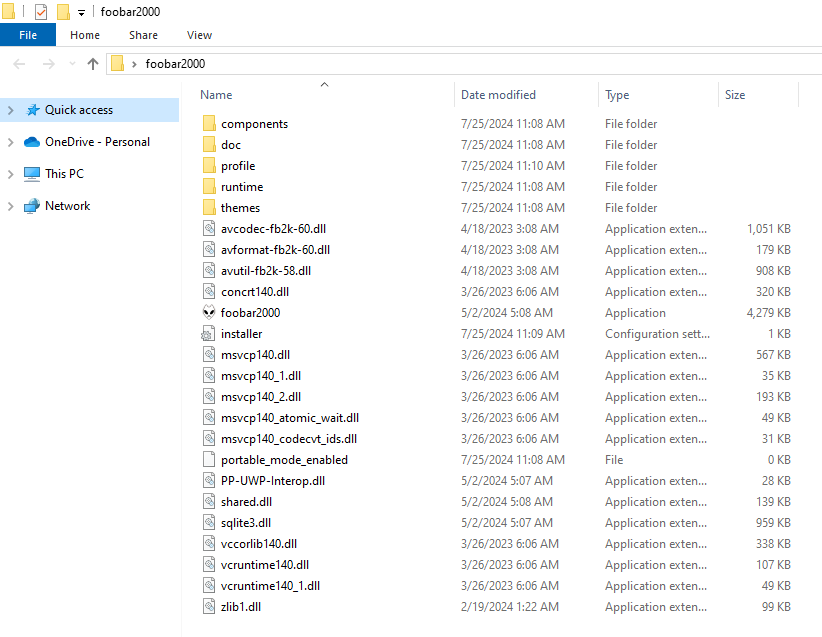

Navigate to your Foobar2000 installation folder

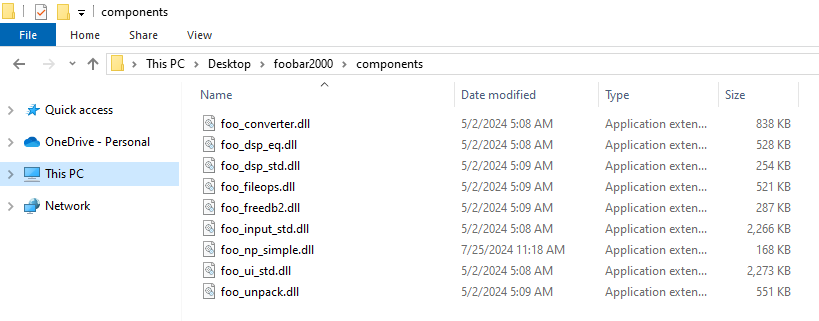

Navigate to the components folder, and move the "foo_np_simple.dll" to this folder


{
    "nowplaying": {
        "playing": $replace(%isplaying%,'?','0'),
        "paused": $replace(%ispaused%,'?','0'),
        "albumartist": "$replace(%album artist%,'"','\"','\','\\')",
        "album": "$replace(%album%,'"','\"','\','\\')",
        "artist": "$replace(%artist%,'"','\"','\','\\')",
        "title": "$replace(%title%,'"','\"','\','\\')",
        "tracknumber": $add($replace(%track number%,'?','0'),0),
        "length": $replace(%length_seconds%,'?','0'),
        "elapsed": $replace(%playback_time_seconds%,'?','0'),
        "path": "$replace(%path%,'"','\"','\','\\')"
    }
}
